WatchGuard Firewall

WatchGuard offers the most comprehensive portfolio of security services in the industry, from traditional intrusion prevention, gateway antivirus, application control, spam prevention, and URL filtering, to more advanced services for protecting against evolving malware, ransomware, and data breaches. Each security service is delivered as an integrated solution within an easy-to-manage and cost-effective Firebox appliance.

JSCM Group will offer you the best prices on all WatchGuard Firewalls.  We offer the highest level of customer service and a dedicated account manager for you to work with on current projects and renewals.  Rest assured, we will be here for all of you WatchGuard needs.


WatchGuard Security Services

Basic Security Services
The Basic Security Suite includes all the traditional network security services typical to a UTM appliance:

  • Intrusion Prevention

  • URL Filtering

  • Gateway AntiVirus

  • Network Discovery

  • Reputation-Based Threat Prevention

  • Spam Prevention

  • Application Control

Total Security Suite
Includes all the services offered with Basic Security plus:

  • APT Blocker

  • Threat Detection and Response

  • Access Portal

  • Data Loss Prevention

  • IntelligentAV

  • DNSWatch



guy working at table.jpg

WatchGuard Firewall

JSMC Group offers competitive pricing on all Watchguard products



Firebox T Series Stack


Firebox T Series Tabletop appliances

WatchGuard Firebox T Series offers enterprise-grade security in a tabletop appliance. Perfect for small to midsize organizations, the T Series is available in four performance models to meet a diverse range of needs.

gray bar.jpg

Watchguard Firebox t15/ T15-w

Watchguard Firebox T15

THROUGHPUT

  • Firewall: 400 Mbps

  • Firewall (IMIX): 120 Mbps

  • VPN (UDP 1518): 150 Mbps

  • VPN (IMIX): 46 Mbps

  • Antivirus: 120 Mbps

  • IPS (fast/full scan): 160 Mbps / 80 Mbps

  • UTM (fast/ full scan): 90 Mbps / 52 Mbps

long dotted gray line.jpg

CAPACITY
Interfaces 10/100/1000*: 3
PoE ports: N/A
I/O interfaces:1 SRL/1 USB 2.0
Concurrent connections: 100,000
Concurrent connections (proxy): 95,000
New connections per second: 2,400
VLANs: 10
WSM licenses (incl): 0
TDR Host Sensors included: 5
Authenticated users limit: 200

VPN TUNNELS
Branch Office VPN: 5
Mobile VPN: 5

SECURITY FEATURES
Firewall: Stateful packet inspection, deep packet inspection, proxy firewall
Application proxies: HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3, POP3S, SMTP, IMAP, IMAPS, and Explicit Proxy
Threat protection: DoS attacks, fragmented & malformed packets, blended threats & more
VoIP: H.323, SIP, call setup and session security
Filtering options: Browser Safe Search, Google for Business

VPN & AUTHENTICATION
Cloud providers: AWS (Static/Dynamic), Azure (Static/Dynamic)
Encryption: AES 256-128 bit, 3DES, DES
IPSec: SHA-2, IKEv1/v2, IKE pre-shared key, 3rd party cert, Suite B
Single sign-on: Windows, Mac OS X, mobile operating systems, RADIUS
Authentication: RADIUS, LDAP, Windows Active Directory, VASCO, RSA SecurID, internal database, Duo, SMS Passcode

MANAGEMENT
Logging and notifications: WatchGuard, Syslog, SNMP v2/v3
User interfaces: Centralized console (WSM), Web UI, scriptable CLI
Reporting: WatchGuard Dimension includes over 100 pre-defined reports, executive summary and visibility tools

CERTIFICATIONS
Security: Pending: CC EAL4+, FIPS 140-2
Safety: NRTL/C, CB
Network: IPv6 Ready Gold (routing)
Hazardous substance control: WEEE, RoHS, REACH

NETWORKING
Routing: Static, Policy-based routing
IP address assignment: Static, DHCP (server, client, relay), PPPoE, DynDNS
NAT : Static, dynamic, 1:1, IPSec traversal, policy-based Wireless: Optional integrated 802.11b/g/n dual band 2.4 GHz and 5 GHz Wi-Fi module


Watchguard Firebox t35/T35-W

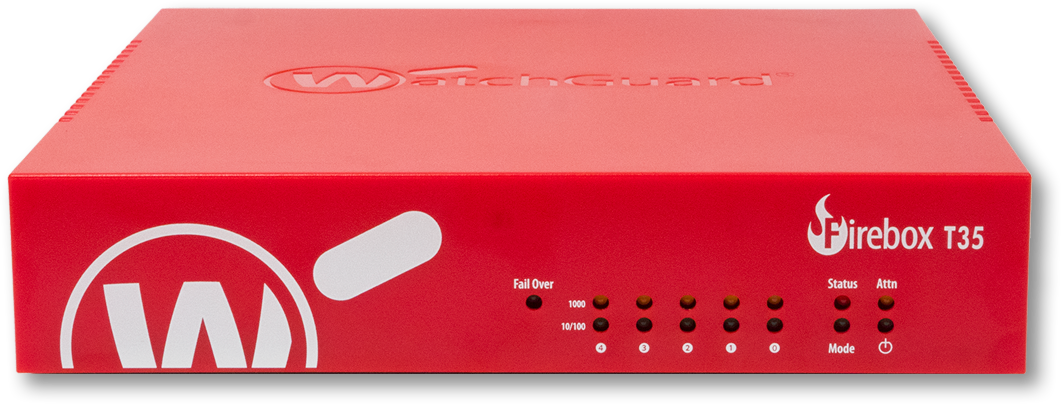

WatchGuard Firebox T35
WatchGuard Firebox T35 Back

THROUGHPUT

  • Firewall: 940 Mbps

  • Firewall (IMIX): 480 Mbps

  • VPN (UDP 1518): 560 Mbps

  • VPN (IMIX): 168 Mbps

  • Antivirus: 325 Mbps

  • IPS (fast/full scan): 573 / 300 Mbps

  • UTM (fast/ full scan): 278 / 203 Mbps

CAPACITY
Interfaces 10/100/1000*: 5
I/O interfaces: 1 SRL/2 USB
PoE ports: 1
Concurrent connections: 1.3 M
Concurrent connections (proxy): 135,000
New connections per second: 6,800
VLANs: 50
WSM licenses (incl): 0
TDR Host Sensors included: 20
Authenticated users limit: 200

VPN TUNNELS
Branch Office VPN: 25
Mobile VPN: 25


Watchguard Firebox t55/T55-W

WatchGuard Firebox T55/T55-W image
WatchGuard Firebox T55 back image

THROUGHPUT

  • Firewall: 1 Gbps

  • Firewall (IMIX): 500 Mbps

  • VPN (UDP 1518): 360 Mbps

  • VPN (IMIX): 148 Mbps

  • Antivirus: 636 Mbps

  • IPS (fast/full scan): 636 / 444 Mbps

  • UTM (fast/ full scan): 523 / 378 Mbps

CAPACITY
Interfaces 10/100/1000*: 5
I/O interfaces: 1 SRL/2 USB
PoE ports: 1
Concurrent connections: 1.3 M
Concurrent connections (proxy): 135,000
New connections per second: 9,500
VLANs: 75
WSM licenses (incl): 0
TDR Host Sensors included: 35
Authenticated users limit: 200

VPN TUNNELS
Branch Office VPN: 40
Mobile VPN: 50

additional T35 & T55 Features

SECURITY FEATURES
Firewall: Stateful packet inspection, deep packet inspection, proxy firewall
Application proxies: HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3, POP3S, SMTP, IMAP, IMAPS, and Explicit Proxy
Threat protection: DoS attacks, fragmented & malformed packets, blended threats & more
VoIP: H.323, SIP, call setup and session security
Filtering options: Browser Safe Search, Google for Business

VPN & AUTHENTICATION
Cloud providers: AWS (Static/Dynamic), Azure (Static/Dynamic)
Encryption: AES 256-128 bit, 3DES, DES
IPSec: SHA-2, IKEv1/v2, IKE pre-shared key, 3rd party cert, Suite B
Single sign-on: Windows, Mac OS X, mobile operating systems, RADIUS
Authentication: RADIUS, LDAP, Windows Active Directory, VASCO, RSA SecurID, internal database, Duo, SMS Passcode

MANAGEMENT
Logging and notifications: WatchGuard, Syslog, SNMP v2/v3
User interfaces: Centralized console (WSM), Web UI, scriptable CLI
Reporting: WatchGuard Dimension includes over 100 pre-defined reports, executive summary and visibility tools

CERTIFICATIONS
Security: Pending: CC EAL4+, FIPS 140-2
Safety: NRTL/C, CB
Network: IPv6 Ready Gold (routing)
Hazardous substance control: WEEE, RoHS, REACH

NETWORKING
Routing: Static, Policy-based routing (BGP4, OSPF, RIP v1/v2),
IP address assignment: Static, DHCP (server, client, relay), PPPoE, DynDNS
NAT : Static, dynamic, 1:1, IPSec traversal, policy-based Wireless: Optional integrated 802.11b/g/n dual band 2.4 GHz and 5 GHz Wi-Fi module
Other features: Server load balancing, static routing, port Independence, transparent/drop-in mode


Watchguard Firebox t70

WatchGuard Firebox T70

THROUGHPUT

  • Firewall throughput: 4 Gbps

  • VPN throughput: 740 Mbps

  • AV throughput: 1.2 Gbps

  • IPS throughput: 1.5 Gbps

  • UTM throughput: 1.1 Gbps

  • Interfaces 10/100/1000: 8

  • I/O interfaces: 1 SRL/2 USB

  • Power over Ethernet (PoE): 2 ports

  • Concurrent connections (bi-directional)
    800,000

  • New connections per second: 27,000

  • VLANs: 75

  • Authenticated users limit: 500

VPN TUNNELS
Branch Office VPN: 50
Mobile VPN IPSec: 60
Mobile VPN IPSec & SSL/L2TP: 60

SECURITY FEATURES
Firewall: Stateful packet inspection, deep packet inspection, proxy firewall
Application proxies: HTTP, HTTPS, SMTP, FTP, DNS, TCP, POP3, POP3S, IMAP, IMAPS?
Threat protection: DoS attacks, fragmented packets, blended threats and more
VoIP: H.323, SIP, call setup and session security
Filtering options: Browser Safe Search, YouTube for Schools, Google for Business

MANAGEMENT
Logging and notifications: WatchGuard, Syslog, SNMP v2/v3
User interfaces: Centralized console (WSM), Web UI, scriptable CLI
Reporting: WatchGuard Dimension includes over 100
pre-defined reports, executive summary and visibility tools

STANDARD NETWORKING
QoS: 8 priority queues, DiffServ, modified strict queuing
IP address assignment: Static, DHCP (server, client, relay), PPPoE, DynDNS
NAT: Static, dynamic, 1:1, IPSec traversal, policy-based
Other features: Static routing, port Independence, transparent/drop-in mode, server load balancing

CERTIFICATIONS
Security: Pending: ICSA Firewall, ICSA IPSec VPN, CC EAL4+, FIPS 10-2
Safety: UL CAN/CSA, UL, CB
Network: IPv6 Ready Gold (routing)
Hazardous substance control: WEEE, RoHS, REACH

VPN & AUTHENTICATION
Encryption: DES, 3DES, AES 128-, 192-, 256-bit
IPSec: SHA-2, IKEv1/v2, IKE pre-shared key, 3rd party cert, Suite B
Single sign-on: Windows, Mac OS X, mobile operating systems, RADIUS
Authentication: RADIUS, LDAP, Windows Active Directory, VASCO, RSA SecurID, internal database, Duo, SMS Passcode

gray bar.jpg

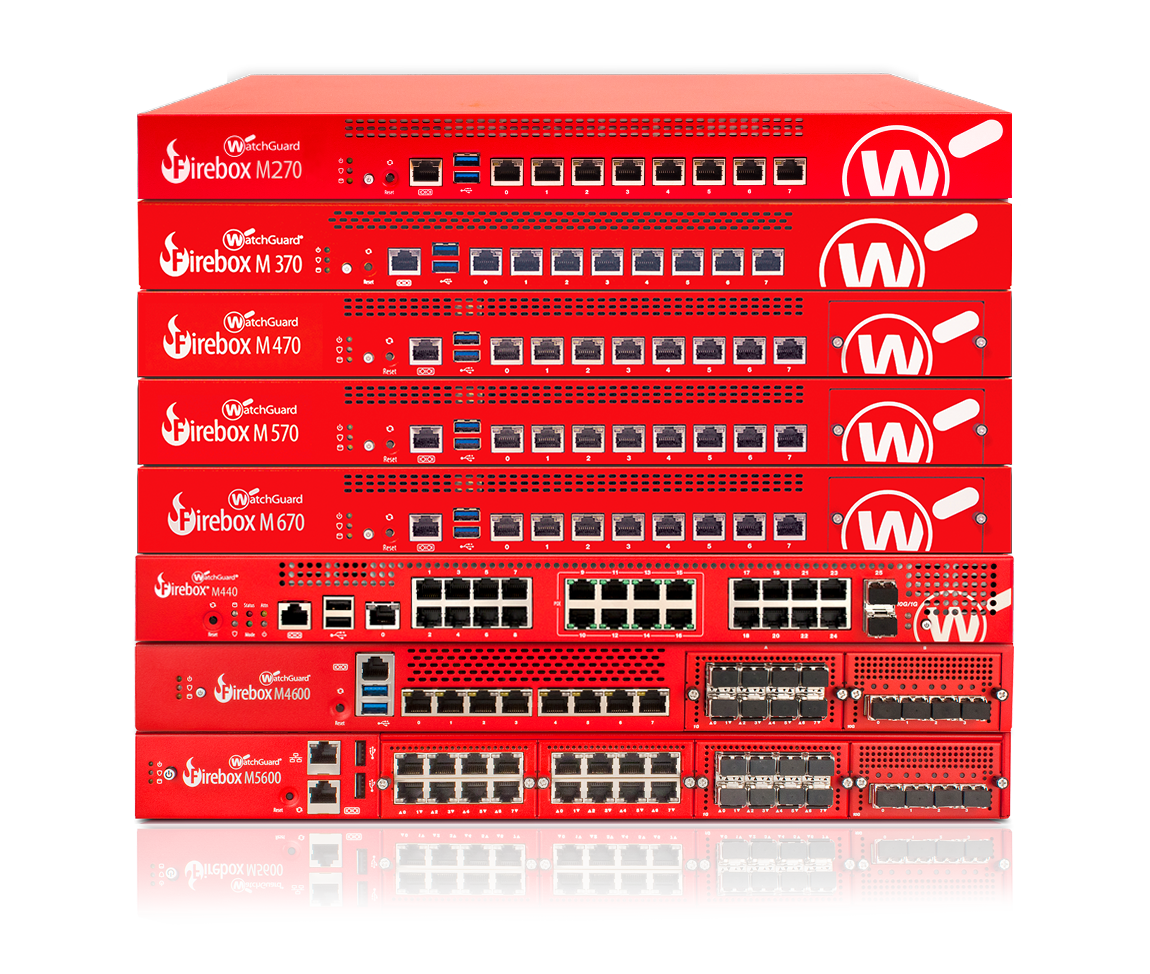

WatchGuard Firebox M Series Stack


firebox M series rack mounted appliances

WatchGuard Firebox M Series provides the performance and uptime needed to keep up
with growing midsize businesses and large distributed enterprises.


Watchguard Firebox M270

WatchGuard Firebox M270 image

THROUGHPUT

  • Firewall (UDP 1518): 4.9 Gbps

  • Firewall (IMIX): 1.8 Gbps

  • VPN (UDP 1518): 1.6 Gbps

  • VPN (IMIX): 480 Mbps

  • HTTPS Content Inspection
    (IPS enabled): 480 Mbps

  • Gateway AntiVirus: 2.1 Gbps

  • IPS(fast/full scan): 2.3/0.9 Gbps

  • UTM(fast/full scan): 1.6/0.8 Gbps

long dotted gray line.jpg

CAPACITY
Interfaces 10/100/1000: 8
I/O interfaces: 1 serial/2 USB
Concurrent connections: 2,000,000
Current connections (proxy): 300,000
New connections per second: 40,000
VLANs: 100
WSM licenses (incl): 4
TDR Host Sensors included: 60
Authenticated users limit: 500

VPN TUNNELS
Branch Office VPN: 50
Mobile VPN: 75

SECURITY FEATURES
Firewall: Stateful packet inspection, deep packet inspection, proxy firewall
Application proxies: HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3, SMTP, IMAPS, POP3S and Explicit Proxy
Threat protection: DoS attacks, fragmented & malformed packets, blended threats & more
VoIP: H.323, SIP, call setup and session security
Filtering options: Browser Safe Search, Google for Business

MANAGEMENT
Logging and notifications: WatchGuard, Syslog, SNMP v2/v3
User interfaces: Centralized console (WSM), Web UI, scriptable CLI
Reporting: WatchGuard Dimension includes over 100
pre-defined reports, executive summary and visibility tools

VPN & AUTHENTICATION
Cloud providers: AWS (Static/Dynamic), Azure (Static/Dynamic)
Encryption: AES 256-128 bit, 3DES, DES
IPSec: SHA-2, IKE v1/v2, IKE pre-shared key, 3rd party cert, Suite B
Single sign-on: Windows, Mac OS X, mobile operating systems, RADIUS, SAML 2.0
Authentication: RADIUS, LDAP, Windows Active Directory, VASCO, RSA SecurID, internal database, SAML 2.0, SMS Passcode

CERTIFICATIONS
Security*: ICSA Firewall, ICSA IPSec VPN, CC EAL4+, FIPS
140-2
Safety: NRTL/C, CB
Network: IPv6 Ready Gold (routing)
Hazardous substance control: WEEE, RoHS, REACH

NETWORKING
Routing: Static, Dynamic (BGP4, OSPF, RIP v1/v2),
Policy-based routing
High Availability: Active/passive, active/active with load balancing
QoS: 8 priority queues, DiffServ, modified strict queuing
IP address assignment: Static, DHCP (server, client, relay), PPPoE, DynDNS
NAT: Static, dynamic, 1:1, IPSec traversal, policy-based, Virtual IP for server load balancing
Link aggregation: 802.3ad dynamic, static, active/backup
Other features: Port Independence, Multi-WAN failover and load balancing, server load balancing, host header redirection, USB modem as a dedicated interface

*Certifications pending


Watchguard Firebox M370

WatchGuard Firebox M370

THROUGHPUT

  • Firewall (UDP 1518): 8 Gbps

  • Firewall (IMIX): 4.7 Gbps

  • VPN (UDP 1518): 4.6 Gbps

  • VPN (IMIX): 1.4 Gbps

  • HTTPS Content Inspection
    (IPS enabled): 800 Mbps

  • Gateway AntiVirus: 3.0 Gbps

  • IPS(fast/full scan): 4.8/2.5 Gbps

  • UTM(fast/full scan): 2.6/1.7 Gbps

long dotted gray line.jpg

CAPACITY
Interfaces 10/100/1000: 8
I/O interfaces: 1 serial/2 USB
Concurrent connections: 2,000,000
Current connections (proxy): 300,000
New connections per second: 40,000
VLANs: 100
WSM licenses (incl): 4
TDR Host Sensors included: 60
Authenticated users limit: 500

VPN TUNNELS
Branch Office VPN: 50
Mobile VPN: 75

SECURITY FEATURES
Firewall: Stateful packet inspection, deep packet inspection, proxy firewall
Application proxies: HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3, SMTP, IMAPS, POP3S and Explicit Proxy
Threat protection: DoS attacks, fragmented & malformed packets, blended threats & more
VoIP: H.323, SIP, call setup and session security
Filtering options: Browser Safe Search, Google for Business

MANAGEMENT
Logging and notifications: WatchGuard, Syslog, SNMP v2/v3
User interfaces: Centralized console (WSM), Web UI, scriptable CLI
Reporting: WatchGuard Dimension includes over 100
pre-defined reports, executive summary and visibility tools

VPN & AUTHENTICATION
Cloud providers: AWS (Static/Dynamic), Azure (Static/Dynamic)
Encryption: AES 256-128 bit, 3DES, DES
IPSec: SHA-2, IKE v1/v2, IKE pre-shared key, 3rd party cert, Suite B
Single sign-on: Windows, Mac OS X, mobile operating systems, RADIUS, SAML 2.0
Authentication: RADIUS, LDAP, Windows Active Directory, VASCO, RSA SecurID, internal database, SAML 2.0, SMS Passcode

CERTIFICATIONS
Security*: ICSA Firewall, ICSA IPSec VPN, CC EAL4+, FIPS
140-2
Safety: NRTL/C, CB
Network: IPv6 Ready Gold (routing)
Hazardous substance control: WEEE, RoHS, REACH

NETWORKING
Routing: Static, Dynamic (BGP4, OSPF, RIP v1/v2),
Policy-based routing
High Availability: Active/passive, active/active with load balancing
QoS: 8 priority queues, DiffServ, modified strict queuing
IP address assignment: Static, DHCP (server, client, relay), PPPoE, DynDNS
NAT: Static, dynamic, 1:1, IPSec traversal, policy-based, Virtual IP for server load balancing
Link aggregation: 802.3ad dynamic, static, active/backup
Other features: Port Independence, Multi-WAN failover and load balancing, server load balancing, host header redirection, USB modem as a dedicated interface

*Certifications pending

gray bar.jpg

Watchguard Firebox M470

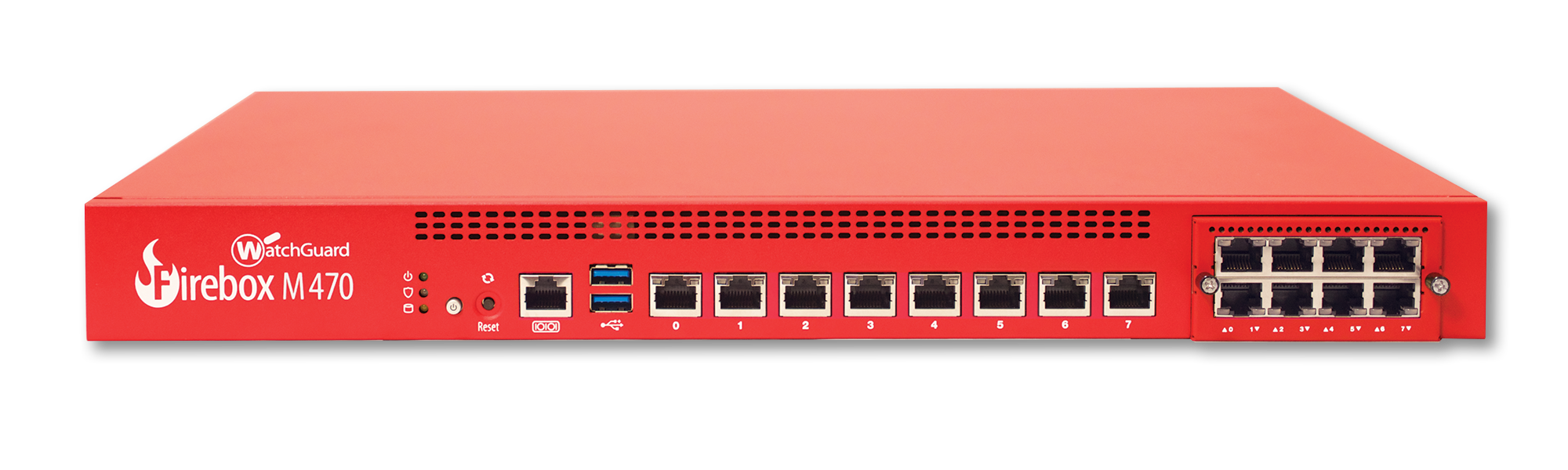

WatchGuard Firebox M470 front
WatchGuard Firebox M470 back

THROUGHPUT

  • Firewall: 19.6 Gbps

  • Firewall (IMIX): 5.6 Gbps

  • VPN (UDP 1518): 5.2 Gbps

  • VPN (IMIX): 1.8 Gbps

  • HTTPS (IPS enabled): 2.0 Gbps

  • AntiVirus: 3.5 Gbps

  • IPS(fast/full scan): 5.7/3.0 Gbps

  • UTM(fast/full scan): 3.1/2.1 Gbps

CAPACITY
Interfaces 10/100/1000*: 8 (optional modules available)
I/O interfaces: 1 SRL/2 USB
Concurrent connections: 3.8 M
Concurrent connections (proxy): 310,000
New connections per second: 82,000
VLANs: 300
WSM licenses (incl): 4
TDR Host Sensors included: 200
Authenticated users limit: Unrestricted

VPN TUNNELS
Branch Office VPN: 250
Mobile VPN: 250


Watchguard Firebox M570

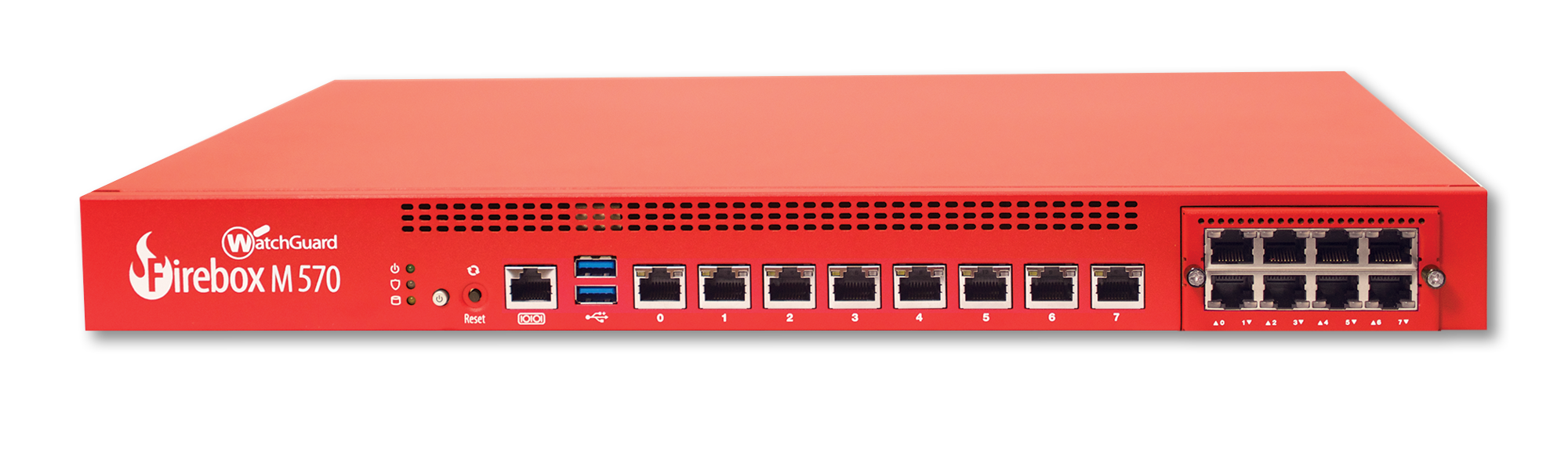

WatchGuard Firebox M570 front

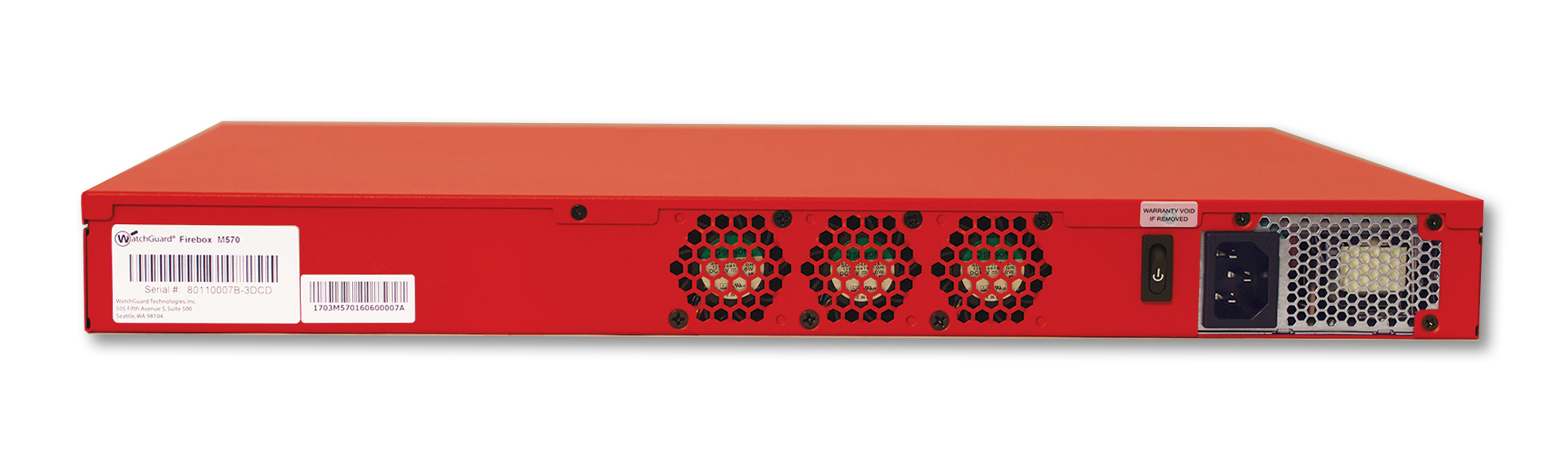

WatchGuard Firebox M570 back
long dotted gray line.jpg

THROUGHPUT

  • Firewall: 26.6 Gbps

  • Firewall (IMIX): 7.6 Gbps

  • VPN (UDP 1518): 5.8 Gbps

  • VPN (IMIX): 2.0 Gbps

  • HTTPS (IPS enabled): 3.4 Gbps

  • AntiVirus: 5.4 Gbps

  • IPS(fast/full scan): 8.0/4.8 Gbps

  • UTM(fast/full scan): 4.4/3.5 Gbps

CAPACITY
Interfaces 10/100/1000*: 8 (optional modules available)
I/O interfaces: 1 SRL/2 USB
Concurrent connections: 8.3 M
Concurrent connections (proxy): 710,000
New connections per second: 115,000
VLANs: 500
WSM licenses (incl): 4
TDR Host Sensors included: 250
Authenticated users limit: Unrestricted

VPN TUNNELS
Branch Office VPN: 500
Mobile VPN: 500


Watchguard Firebox M670

WatchGuard Firebox M670 front
WatchGuard Firebox M670 back
long dotted gray line.jpg

THROUGHPUT

  • Firewall: 34 Gbps

  • Firewall (IMIX): 11.2 Gbps

  • VPN (UDP 1518): 7.6 Gbps

  • VPN (IMIX): 2.6 Gbps

  • HTTPS (IPS enabled): 4.0 Gbps

  • AntiVirus: 6.2 Gbps

  • IPS(fast/full scan): 10.4/5.6 Gbps

  • UTM(fast/full scan): 5.4/4.2 Gbps

CAPACITY
Interfaces 10/100/1000*: 8 (optional modules available)
I/O interfaces: 1 SRL/2 USB
Concurrent connections: 8.5 M
Concurrent connections (proxy): 920,000
New connections per second: 140,000
VLANs: 750
WSM licenses (incl): 4
TDR Host Sensors included: 250
Authenticated users limit: Unrestricted

VPN TUNNELS
Branch Office VPN: 750
Mobile VPN: 750


additional M470, M570 & M670 Features

Up to 34 Gbps firewall throughput, up to 5.4 Gbps UTM throughput

SECURITY FEATURES
Firewall: Stateful packet inspection, deep packet inspection, proxy firewall
Application proxies: HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3, POP3S, SMTP, IMAP, IMAPS, and Explicit
Threat protection: DoS attacks, fragmented & malformed packets, blended threats & more
VoIP: H.323, SIP, call setup and session security
Filtering options: Browser Safe Search, Google for Business

VPN & AUTHENTICATION
Cloud providers: AWS (Static/Dynamic), Azure (Static/Dynamic)
Encryption: AES 256-128 bit, 3DES, DES
IPSec: SHA-2, IKEv1/v2, IKE pre-shared key, 3rd party cert, Suite B
Single sign-on: Windows, Mac OS X, mobile operating systems, SAML 2.0, RADIUS
Authentication: RADIUS, LDAP, Windows Active Directory, VASCO, RSA SecurID, internal database, SAML 2.0, SMS Passcode

MANAGEMENT
Logging and notifications: WatchGuard, Syslog, SNMP v2/v3
User interfaces: Centralized console (WSM), Web UI, scriptable CLI
Reporting: WatchGuard Dimension includes over 100 pre-defined reports, executive summary and visibility tools

CERTIFICATIONS
Security: Pending: ICSA Firewall, ICSA IPSec VPN , CC EAL4+, FIPS 140-2
Safety: NRTL/C, CB
Network: IPv6 Ready Gold (routing)
Hazardous substance control: WEEE, RoHS, REACH

NETWORKING
Routing: Static, Dynamic (BGP4, OSPF, RIP v1/v2), Policy-based routing
High Availability: Active/passive, active/active with load balancing
QoS: 8 priority queues, DiffServ, modified strict queuing
IP address assignment: Static, DHCP (server, client, relay), PPPoE, DynDNS
NAT: Static, dynamic, 1:1, IPSec traversal, policy-based, Virtual IP for server load balancing
Link aggregation: 802.3ad dynamic, static, active/backup
Other features: Port Independence, Multi-WAN failover and load balancing, server load balancing, host header redirection, USB modem as a dedicated interface

* Firebox M470, 570 and 670 ship with one empty bay that can accommodate one of the following: 4 x 10 Gb fiber, 8 x 1 Gb fiber, or 8 x 1 Gb copper

gray bar.jpg

Watchguard Firebox M4600

base + 4 x 10 Gb interfaces

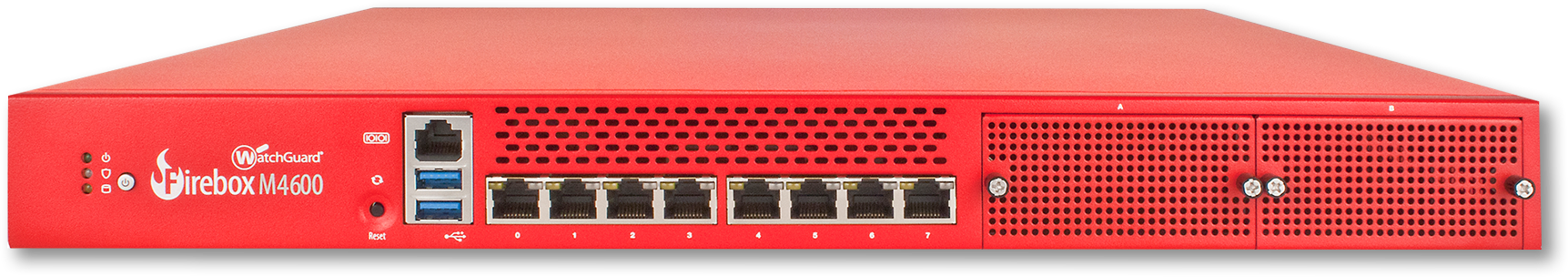

WatchGuard Firebox M4600 front
WatchGuard Firebox M4600 back

THROUGHPUT

  • Firewall throughput*: 40 Gbps

  • VPN throughput*: 10 Gbps

  • AV throughput*: 9 Gbps

  • IPS throughput*: 13 Gbps

  • UTM throughput*: 8 Gbps

  • Interfaces (installed): 8 x 1Gb

  • I/O interfaces: 1 serial/2 USB

  • Concurrent connections: 7.5 million
    (bi-directional)

  • New connections per second: 160,000

  • VLANs: 1,000

  • Authenticated users limit: unrestricted

VPN TUNNELS
Branch Office VPN: 5,000
Mobile VPN IPSec: 10,000
Mobile VPN SSL/L2TP: 10,000

Watchguard Firebox M5600

base + 4 x 10 Gb interfaces


WatchGuard Firebox M5600 front
WatchGuard Firebox M5600 back

THROUGHPUT

  • Firewall throughput*: 60 Gbps

  • VPN throughput*: 10 Gbps

  • AV throughput*: 12 Gbps

  • IPS throughput*: 18 Gbps

  • UTM throughput*: 11 Gbps

  • Interfaces (installed): 8 x 1Gb and 4 x 10 Gb

  • I/O interfaces: 1 serial/2 USB

  • Concurrent connections: 12.7 million
    (bi-directional)

  • New connections per second: 240,000

  • VLANs: unrestricted

  • Authenticated users limit: unrestricted

VPN TUNNELS
Branch Office VPN: unrestricted
Mobile VPN IPSec: unrestricted
Mobile VPN SSL/L2TP: unrestricted

Additional M4600 & M5600 Features

SECURITY FEATURES
Firewall: Stateful packet inspection, deep packet inspection, proxy firewall
Application proxies: HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3, SMTP, IMAPS, Explicit Proxy
Threat protection: DoS attacks, fragmented & malformed packets, blended threats & more
VoIP: H.323, SIP, call setup and session security
Filtering options: Browser Safe Search, YouTube for Schools, Google for Business

MANAGEMENT
Logging and notifications: WatchGuard, Syslog, SNMP v2/v3
User interfaces: Centralized console (WSM), Web UI, scriptable CLI
Reporting: WatchGuard Dimension includes over 100 pre-defined reports, executive summary and visibility tools

CERTIFICATIONS
Security: ICSA Firewall, ICSA IPSec VPN, Pending: CC EAL4+, FIPS 140-2
Safety: NRTL/C, CB
Network: IPv6 Ready Gold (routing)
Hazardous substance control: WEEE, RoHS, REACH

STANDARD NETWORKING
Routing: Static, Dynamic (BGP, OSPF, RIP), Policy-based VPN
High Availability: Active/passive, active/active with load balancing
QoS: 8 priority queues, DiffServ, modified strict queuing
IP address assignment: Static, DHCP (server, client, relay), PPPoE, DynDNS
NAT: Static, dynamic, 1:1, IPSec traversal, policy-based, Virtual IP for server load balancing
Link aggregation: 802.3ad dynamic, static, active/backup
Other features: Port Independence, Multi-WAN failover and load balancing, server load balancing, transparent/drop-in mode, USB modem as a dedicated interface

VPN & AUTHENTICATION
Encryption
DES, 3DES, AES 128-, 192-, 256-bit
IPSec: SHA-2, IKEv1/v2 , IKE pre-shared key, 3rd party cert Single sign-on: Windows, Mac OS X, mobile operating systems, RADIUS, SAML 2.0
Authentication: RADIUS, LDAP, Windows Active Directory, VASCO, RSA SecurID, internal database, SAML 2.0, SMS Passcode

*Throughput rates are dependent on network interface modules selected for your M4600 or M5600 deployment.

gray bar.jpg

WHY JSCM GROUP

To take full advantage of all that WatchGuard has to offer, JSCM Group can assist you in getting the perfect service for your organization. We're experts in the configuration, deployment, and management of WatchGuard services and devices.

  • Competitive pricing

  • Deployment

  • Configuration

  • Troubleshooting

  • Management

If you're ready to get started, or you just want to learn more, use the form below.



WatchGuard ad blue background.jpg

Smart Security

WatchGuard Firewalls
