Barracuda CloudGen Firewall
Save time and money when you order through JSCM Group
Barracuda CloudGen Firewall F18
Capacity
Firewall Throughput: 1.0 Gbps
VPN Throughput : 190 Mbps
IPS Throughput: 400 Mbps
NGFW Throughput: 300 Mbps
Threat Protection Throughput: 320 Mbps
Recommended no. of users: 25-75
Concurrent Sessions: 80,000
New Sessions per Second: 8,000
Hardware
Form Factor: Desktop
Dimensions (WxDxH; in): 10.8 x 6.4 x 1.7
Dimensions (WxDxH; cm):27.4 x 16.2 x 4.4
Weight (lbs): 3.1
Weight (kg): 1.3
Copper Ethernet NICs: 4x1GbE
1 GbE Fiber NICs (SFP)
10 GbE Fiber NICs (SFP+)
40 GbE Fiber NICs (QSFP)
Max Storage: 50 GB or better
Power Supply: Single, External
Integrated Switch
Integrated DSL Modem (incl. WAN)
Integrated Wi-Fi Access Point
Features
Firewall incl.IPS
Application Control
Dynamic Routing
App-Based Provider Selection
Client-to-Site and Site-to-Site VPN (unlimited)
SSL Interception
SD-WAN
Web Filter
Zero-Touch Deployment
Advanced Threat Protection
Optional
Malware Protection
Advanced Threat and Malware Protection bundle
Advanced Remote Access
Total Protect bundle
Total Protect PLUS bundle
Barracuda CloudGen Firewall F80
Capacity
Firewall Throughput: 1.5 Gbps
VPN Throughput: 240 Mbps
IPS Throughput: 400 Mbps
NGFW Throughput: 400 Mbps
Threat Protection Throughput: 380 Mbps
Recommended no. of users: 50-100
Concurrent Sessions: 80,000
New Sessions per Second: 8,000
Hardware
Form Factor: Desktop
Dimensions (WxDxH; in): 10.8 x 6.4 x 1.7
Dimensions (WxDxH; cm): 27.4 x 16.2 x 4.4
Weight (lbs):3.1
Weight (kg): 1.3
Copper Ethernet NICs: 4x1 GbE
1 GbE Fiber NICs (SFP)
10 GbE Fiber NICs (SFP+)
40 GbE Fiber NICs (QSFP)
Max Storage: 50 GB or better
Power Supply: Single, External
Integrated Switch
Integrated DSL Modem (incl. WAN)
Integrated Wi-Fi Access Point
Features
Firewall incl.IPS
Application Control
Dynamic Routing
App-Based Provider Selection
Client-to-Site and Site-to-Site VPN (unlimited)
SSL Interception
SD-WAN
Web Filter
Zero-Touch Deployment
Advanced Threat Protection
Optional
Malware Protection
Advanced Threat and Malware Protection bundle
Advanced Remote Access
Total Protect bundle
Total Protect PLUS bundle
Barracuda CloudGen Firewall F82.DSLA
Capacity
Firewall Throughput: 1.5 Gbps
VPN Throughput: 240 Mbps
IPS Throughput: 400 Mbps
NGFW Throughput: 400 Mbps
Threat Protection Throughput: 380 Mbps
Recommended no. of users: 50-100
Concurrent Sessions: 80,000
New Sessions per Second: 8,000
Hardware
Form Factor: Desktop
Dimensions (WxDxH; in): 14.9 x 6.4 x 1.7
Dimensions (WxDxH; cm): 37.8 x 16.0 x 4 .4
Weight (lbs): 4.9
Weight (kg): 2.2
Copper Ethernet NICs: 4x1 GbE
1 GbE Fiber NICs (SFP): 1x1 GbE
10 GbE Fiber NICs (SFP+)
40 GbE Fiber NICs (QSFP)
Max Storage: 50 GB or better
Power Supply: Single, External
Integrated Switch
Integrated DSL Modem (incl. WAN): Annex A, 1xRJ11 + 1x1 GbE SFP
Integrated Wi-Fi Access Point
Features
Firewall incl.IPS
Application Control
Dynamic Routing
App-Based Provider Selection
Client-to-Site and Site-to-Site VPN (unlimited)
SSL Interception
SD-WAN
Web Filter
Zero-Touch Deployment
Advanced Threat Protection
Optional
Malware Protection
Advanced Threat and Malware Protection bundle
Advanced Remote Access
Total Protect bundle
Total Protect PLUS bundle
Barracuda CloudGen Firewall F183
Capacity
Firewall Throughput: 2.0 Gbps
VPN Throughput: 300 Mbps
IPS Throughput: 580 Mbps
NGFW Throughput: 700 Mbps
Threat Protection Throughput: 600 Mbps
Recommended no. of users: 75-150
Concurrent Sessions: 100,000
New Sessions per Second: 9,000
Hardware
Form Factor: Desktop
Dimensions (WxDxH; in): 14.9 x 6.4 x 1.7
Dimensions (WxDxH; cm): 37.8 x 16.0 x 4.4
Weight (lbs): 4.9
Weight (kg): 2.1
Copper Ethernet NICs: 6x1 GbE
1 GbE Fiber NICs (SFP): 2x1 GbE
10 GbE Fiber NICs (SFP+)
40 GbE Fiber NICs (QSFP)
Max Storage: 80 GB or better
Power Supply: Single, External
Integrated Switch
Integrated DSL Modem (incl. WAN)
Integrated Wi-Fi Access Point
Features
Firewall incl.IPS
Application Control
Dynamic Routing
App-Based Provider Selection
Client-to-Site and Site-to-Site VPN (unlimited)
SSL Interception
SD-WAN
Web Filter
Zero-Touch Deployment
Advanced Threat Protection
Optional
Malware Protection
Advanced Threat and Malware Protection bundle
Advanced Remote Access
Total Protect bundle
Total Protect PLUS bundle
Barracuda CloudGen Firewall F280
Capacity
Firewall Throughput: 3.7 Gbps
VPN Throughput: 1.1 Gbps
IPS Throughput: 1.2 Gbps
NGFW Throughput: 1.0 Gbps
Threat Protection Throughput: 900 Mbps
Recommended no. of users: 150-300
Concurrent Sessions: 250,000
New Sessions per Second: 10,000
Hardware
Form Factor: Desktop
Dimensions (WxDxH; in): 14.9 x 6.4 x 1.7
Dimensions (WxDxH; cm): 37.8 x 16.0 x 4.4
Weight (lbs): 4.9
Weight (kg): 2.1
Copper Ethernet NICs: 6x1 GbE
1 GbE Fiber NICs (SFP)
10 GbE Fiber NICs (SFP+)
40 GbE Fiber NICs (QSFP)
Max Storage: 80 GB or better
Power Supply: Single, External
Integrated Switch: 8-port
Integrated DSL Modem (incl. WAN)
Integrated Wi-Fi Access Point
Features
Firewall incl.IPS
Application Control
Dynamic Routing
App-Based Provider Selection
Client-to-Site and Site-to-Site VPN (unlimited)
SSL Interception
SD-WAN
Web Filter
Zero-Touch Deployment
Advanced Threat Protection
Optional
Malware Protection
Advanced Threat and Malware Protection bundle
Advanced Remote Access
Total Protect bundle
Total Protect PLUS bundle

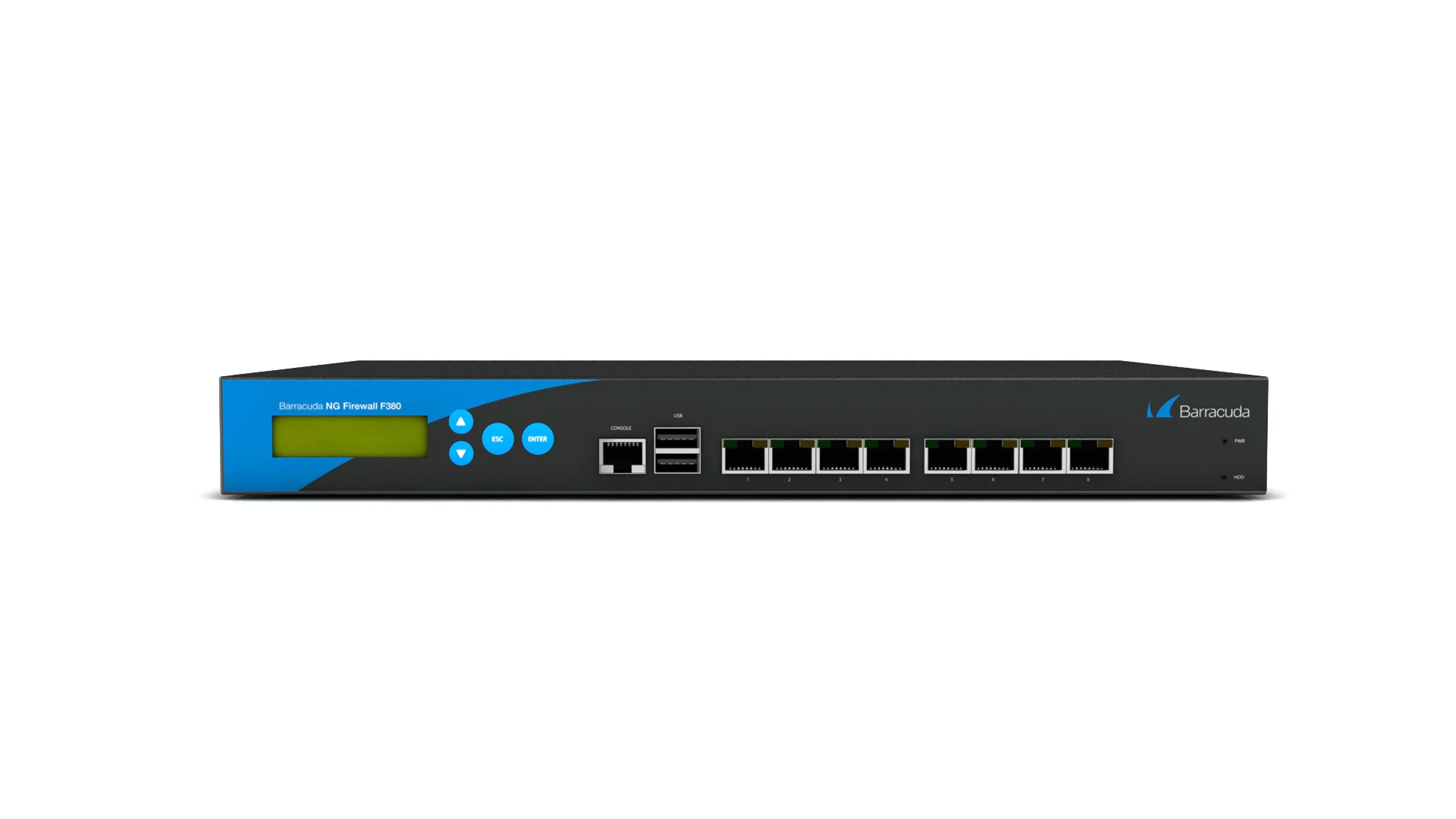

Barracuda CloudGen Firewall F380
Capacity
Firewall Throughput: 5.2 Gbps
VPN Throughput: 1.4 Gbps
IPS Throughput: 2.0 Gbps
NGFW Throughput: 1.4 Gbps
Threat Protection Throughput: 1.2 Gbps
Recommended no. of users: 200-500
Concurrent Sessions: 400,000
New Sessions per Second: 15,000
Hardware
Form Factor - 1U Rack Mount
Dimensions (WxDxH; in)1 - 6.9 x 13.0 x 1.7
Dimensions (WxDxH; cm) - 42.8 x 33 x 4.4
Weight (lbs): 13.0
Weight (kg): 5.9
Copper Ethernet NICs: 8x1 GbE
1 GbE Fiber NICs (SFP)
10 GbE Fiber NICs (SFP+)
40 GbE Fiber NICs (QSFP)
Max Storage: 80 GB or better
Power Supply: Single
Integrated Switch
Integrated DSL Modem (incl. WAN)
Integrated Wi-Fi Access Point
Features
Firewall incl.IPS
Application Control
Dynamic Routing
App-Based Provider Selection
Client-to-Site and Site-to-Site VPN (unlimited)
SSL Interception
SD-WAN
Web Filter
Zero-Touch Deployment
Optional Features
Advanced Threat Protection
Malware Protection
Advanced Threat and Malware Protection bundle
Advanced Remote Access
Total Protect bundle
Total Protect PLUS bundle

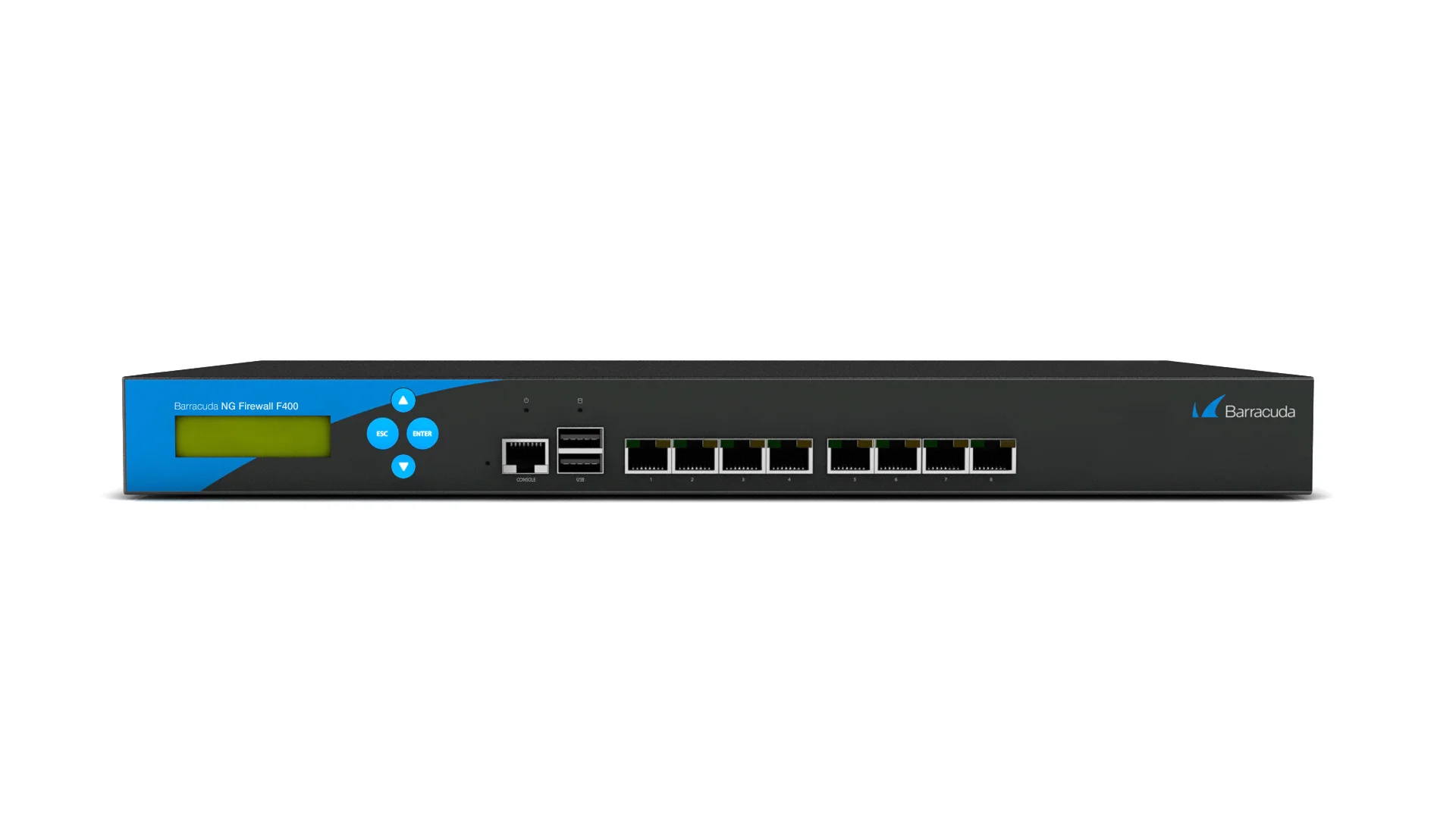

Barracuda CloudGen Firewall F400
Capacity
GbpsFirewall Throughput: 9.0 Gbps
GbpsVPN Throughput: 2.3 Gbps
GbpsIPS Throughput: 3.0 Gbps
GbpsNGFW Throughput: 3.0 Gbps
GbpsThreat Protection Throughput: 2.7 Gbps
Recommended no. of users: 300-1,000
Concurrent Sessions: 500,000
New Sessions per Second: 20,000
Hardware
Form Factor: 1U Rack Mount
Dimensions (WxDxH; in): 16.9 x 17.7 x 1.7
Dimensions (WxDxH; cm): 43 x 45 x 4.4
Weight (lbs): 16.5
Weight (kg): 7.5
Copper Ethernet NICs: 8x1 GbE
1 GbE Fiber NICs (SFP)
10 GbE Fiber NICs (SFP+)
40 GbE Fiber NICs (QSFP)
Max Storage: 80 GB or better
Power Supply: Single
Integrated Switch
Integrated DSL Modem (incl. WAN)
Integrated Wi-Fi Access Point
Features
Firewall incl.IPS
Application Control
Dynamic Routing
App-Based Provider Selection
Client-to-Site and Site-to-Site VPN (unlimited)
SSL Interception
SD-WAN
Web Filter
Zero-Touch Deployment
Advanced Threat Protection
Optional Features
Malware Protection
Advanced Threat and Malware Protection bundle
Advanced Remote Access
Total Protect bundle
Total Protect PLUS bundle
Barracuda CloudGen Firewall F600
Capacity
GbpsFirewall Throughput: 11 Gbps
GbpsVPN Throughput: 3.1 Gbps
GbpsIPS Throughput: 4.6 Gbps
GbpsNGFW Throughput: 4.2 Gbps
GbpsThreat Protection Throughput: 4.0 Gbps
Recommended no. of users: 1,000-4,000
Concurrent Sessions: 2,100,000
New Sessions per Second: 115,000
Hardware
Form Factor: 1U Rack Mount
Dimensions (WxDxH; in): 16.9 x 17.7 x 1.7
Dimensions (WxDxH; cm): 43 x 45 x 4.4
Weight (lbs): 17.6
Weight (kg): 8.0
Copper Ethernet NICs: 12x1 GbE
1 GbE Fiber NICs (SFP)
10 GbE Fiber NICs (SFP+)
40 GbE Fiber NICs (QSFP)
Max Storage: 180 GB or better
Power Supply: Single
Integrated Switch
Integrated DSL Modem (incl. WAN)
Integrated Wi-Fi Access Point
Features
Firewall incl.IPS
Application Control
Dynamic Routing
App-Based Provider Selection
Client-to-Site and Site-to-Site VPN (unlimited)
SSL Interception
SD-WAN
Web Filter
Zero-Touch Deployment
Optional Features
Advanced Threat Protection
Malware Protection
Advanced Threat and Malware Protection bundle
Advanced Remote Access
Total Protect bundle
Total Protect PLUS bundle
Barracuda CloudGen Firewall F800 submodel CCC
Capacity
Firewall Throughput: 30.0 Gbps
VPN Throughput: 7.5 Gbps
IPS Throughput: 8.3 Gbps
NGFW Throughput: 7.7 Gbps
Threat Protection Throughput: 7.6 Gbps
Recommended no. of users: 4,000-6,000
Concurrent Sessions: 2,500,000
New Sessions per Second: 180,000
Hardware
Form Factor: 1U Rack Mount
Dimensions (WxDxH; in): 17.2 x 22.4 x 1.7
Dimensions (WxDxH; cm): 44 x 57 x 4.4
Weight (lbs): 26.0
Weight (kg): 12.0
Copper Ethernet NICs: 24x1 GbE
1 GbE Fiber NICs (SFP)
10 GbE Fiber NICs (SFP+)
40 GbE Fiber NICs (QSFP)
Max Storage: 430 GB or better
Power Supply: Dual
Integrated Switch
Integrated DSL Modem (incl. WAN)
Integrated Wi-Fi Access Point
Features
Firewall incl.IPS
Application Control
Dynamic Routing
App-Based Provider Selection
Client-to-Site and Site-to-Site VPN (unlimited)
SSL Interception
SD-WAN
Web Filter
Zero-Touch Deployment
Advanced Threat Protection
Optional
Malware Protection
Advanced Threat and Malware Protection bundle
Advanced Remote Access
Total Protect bundle
Total Protect PLUS bundle
Barracuda CloudGen Firewall F900 submodel CCC
Capacity
Firewall Throughput: 35.0 Gbps
VPN Throughput: 9.3 Gbps
IPS Throughput: 11.3 Gbps
NGFW Throughput: 8.0 Gbps
Threat Protection Throughput: 8.0 Gbps
Recommended no. of users: 6,000-9,000
Concurrent Sessions: 4,000,000
New Sessions per Second: 190,000
Hardware
Form Factor: 1U Rack Mount
Dimensions (WxDxH; in): 17.2 x 22.4 x 1.7
Dimensions (WxDxH; cm): 44 x 57 x 4.4
Weight (lbs): 26.0
Weight (kg): 12.0
Copper Ethernet NICs: 32x1 GbE
1 GbE Fiber NICs (SFP)
10 GbE Fiber NICs (SFP+)
40 GbE Fiber NICs (QSFP)
Max Storage: 430 GB or better
Power Supply: Dual
Integrated Switch
Integrated DSL Modem (incl. WAN)
Integrated Wi-Fi Access Point
Features
Firewall incl.IPS
Application Control
Dynamic Routing
App-Based Provider Selection
Client-to-Site and Site-to-Site VPN (unlimited)
SSL Interception
SD-WAN
Web Filter
Zero-Touch Deployment
Advanced Threat Protection
Optional
Malware Protection
Advanced Threat and Malware Protection bundle
Advanced Remote Access
Total Protect bundle
Total Protect PLUS bundle
Barracuda CloudGen Firewall F1000 submodel CE0
Capacity
Firewall Throughput: 40 Gbps
VPN Throughput: 10 Gbps
IPS Throughput: 13 Gbps
NGFW Throughput: 10.2 Gbps
Threat Protection Throughput: 4.0 Gbps
Recommended no. of users: 7,000-15,000
Concurrent Sessions: 10,000,000
New Sessions per Second: 250,000
Hardware
Form Factor: 2U Rack Mount
Dimensions (WxDxH; in): 17.0 x 24.6 x 3.5
Dimensions (WxDxH; cm): 43.2 x 62.6 x 8.8
Weight (lbs): 44.1
Weight (kg): 20.0
Copper Ethernet NICs: 16x1 GbE
1 GbE Fiber NICs (SFP)
10 GbE Fiber NICs (SFP+)
4x10 GbE
40 GbE Fiber NICs (QSFP)
Max Storage: 550 GB or better
Power Supply: Dual
Integrated Switch
Integrated DSL Modem (incl. WAN)
Integrated Wi-Fi Access Point
Features
Firewall incl.IPS
Application Control
Dynamic Routing
App-Based Provider Selection
Client-to-Site and Site-to-Site VPN (unlimited)
SSL Interception
SD-WAN
Web Filter
Zero-Touch Deployment
Advanced Threat Protection
Optional
Malware Protection
Advanced Threat and Malware Protection bundle
Advanced Remote Access
Total Protect bundle
Total Protect PLUS bundle
Ready to move to Barracuda?
