• Remote Configuration

• Multigigabit Ethernet

• Flexible Stacking

• Layer 3 Scalability

• Remote Live Tools

• And More...

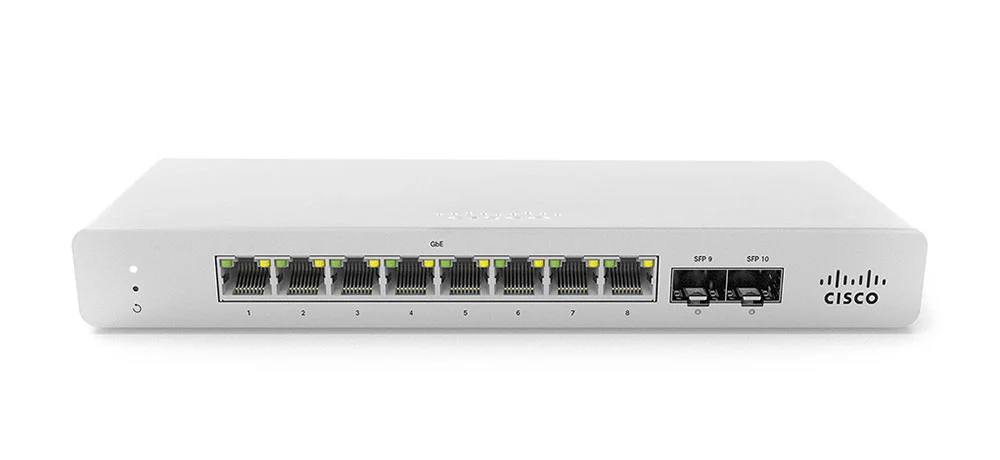

MS120-8 Series

Compact

• 8 x 1GbE ports

• 2x 1G SFP uplinks

• PoE+ Support

• Integrated mounting

Configurations
MS120-8 LP includes 67W PoE/PoE+
MS120-8 FP includes 124W PoE/PoE+

Hardware platform
Small, mountable form factor
Low noise, fanless
Voice and Video QoS
Non-blocking switch fabric
Ultra-reliable, includes lifetime warranty

Power
MS120-8FP maximum PoE output: 124 W
PoE available simultaneously on all ports
Intelligent PoE power allocation based on device advertisement (LLDP)

Cloud management
Visibility and control over thousands of ports
Built-in multi site management
Zero touch provisioning

Monitoring and diagnostics
Cable failure testing
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts

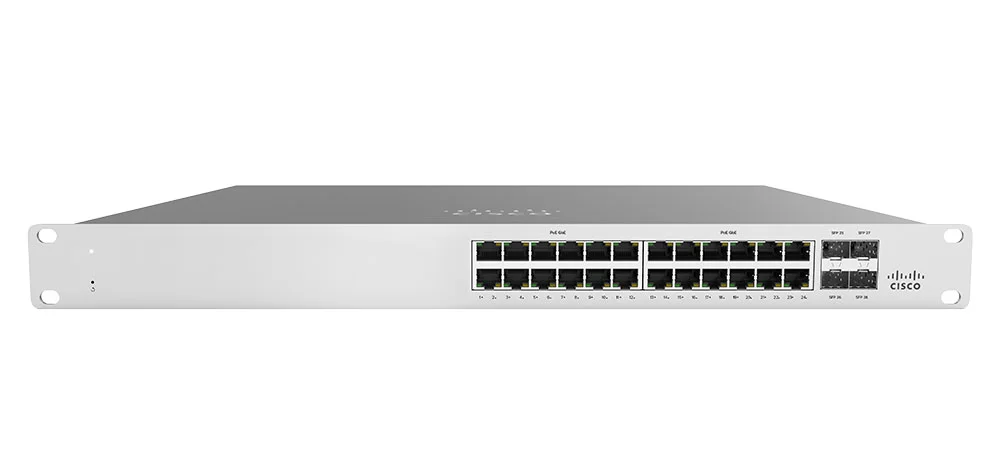

MS120-24

Basic

• 24-port Model

• PoE+ Support

• Recommended for SOHO and SMB’s

Configurations
4 × 1GbE SFP uplink
MS120-24P includes 370 W PoE/PoE+

Hardware platform
Voice and Video QoS
Non-blocking switch fabric
Ultra-reliable, includes lifetime warranty

Power over Ethernet (for PoE models)
802.3af (PoE) 15.4 W per port
802.3at (PoE+) 30 W per port
MS120-24P maximum PoE output: 370 W
PoE available simultaneously on all ports
Intelligent PoE power allocation based on device advertisement (LLDP, CDP)

Cloud management
Visibility and control over thousands of ports
Built-in multi site management
Zero touch provisioning

Monitoring and diagnostics
Cable failure testing
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts

MS120-48

Basic

• 48-port Model

• PoE+ Support

• Recommended for SOHO and SMB’s

Configurations
4 × 1GbE SFP uplinks
MS120-48LP includes 370 W PoE/PoE+
MS120-48FP includes 740 W PoE/PoE+

Hardware platform
Voice and Video QoS
Non-blocking switch fabric
Ultra-reliable, includes lifetime warranty

Monitoring and diagnostics
Cable failure testing
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts

Power over Ethernet (for PoE models)
802.3af (PoE) 15.4 W per port
802.3at (PoE+) 30 W per port
MS120-48LP maximum PoE output: 370 W
MS120-48FP maximum PoE output: 740 W
PoE available simultaneously on all ports
Intelligent PoE power allocation based on device advertisement (LLDP, CDP)

Cloud management
Visibility and control over thousands of ports
Built-in multi site management
Zero touch provisioning

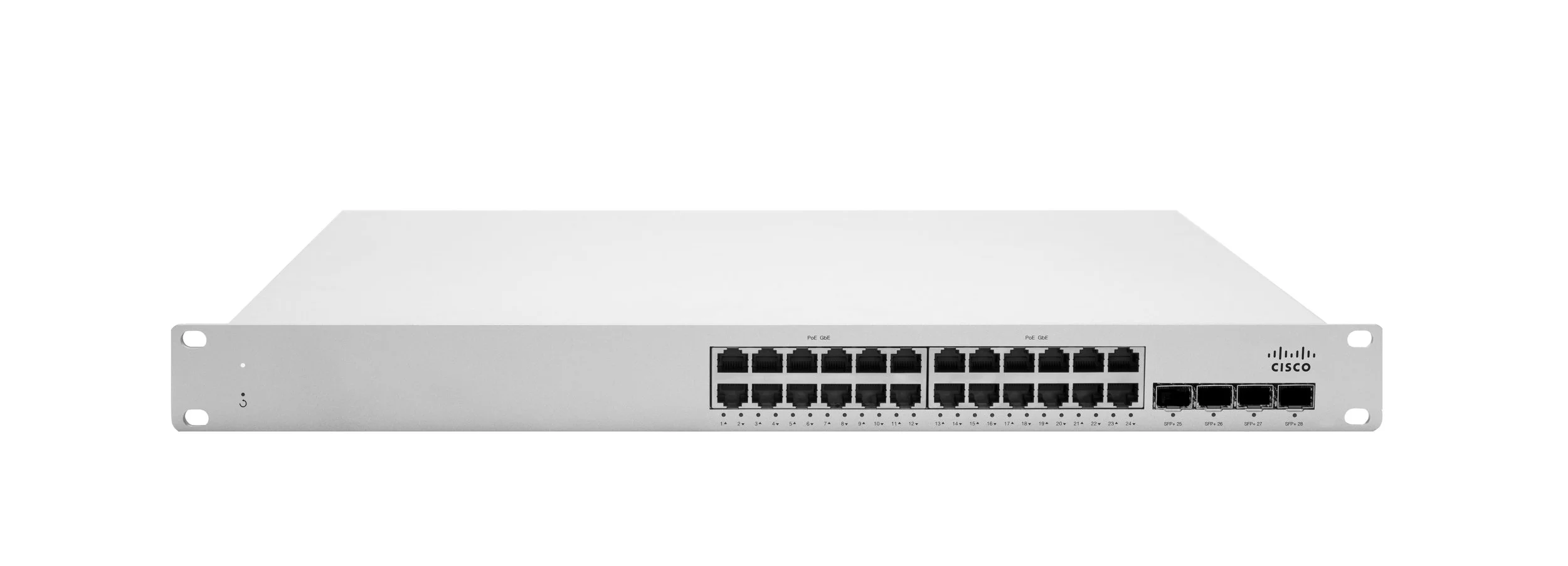

MS225-24

General Purpose

• 4 x 10G SFP+ uplink

• 80g Physical stacking

• Stacks with MS210

• 24-port model, PoE+ Support

• Recommended for medium campus deployments

Configurations
MS225-24P includes 370 W PoE / PoE+

Hardware platform
Voice and Video QoS
Supports Cisco redundant power system (RPS2300)
Non-blocking switch fabric
Ultra-reliable, includes lifetime warranty

Power over Ethernet (for PoE model)
802.3af (PoE) 15.4 W per port
802.3at (PoE+) 30 W per port
MS225-24P maximum PoE output: 370 W
PoE available simultaneously on all ports
Intelligent PoE power allocation based on device advertisement (LLDP, CDP)

Cloud management
Visibility and control over thousands of ports
Built-in multi site management
Zero touch provisioning

Monitoring and diagnostics
Cable failure testing
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts

MS225-48

General Purpose

• 4 x 10G SFP+ uplink

• 80g Physical stacking

• Stacks with MS210

• 48-port model, PoE+ Support

• Recommended for medium campus deployments

Configurations
MS225-48LP includes 370 W PoE / PoE+
MS225-48FP includes 740 W PoE / PoE+

Hardware platform
Voice and Video QoS
Supports Cisco redundant power system (RPS2300)
Non-blocking switch fabric
Ultra-reliable, includes lifetime warranty

Power over Ethernet (for PoE models)
802.3af (PoE) 15.4 W per port
802.3at (PoE+) 30 W per port
MS225-48LP maximum PoE output: 370 W
MS225-48FP maximum PoE output: 740 W
PoE available simultaneously on all ports
Intelligent PoE power allocation based on device advertisement (LLDP, CDP)

Cloud management
Visibility and control over thousands of ports
Built-in multi site management
Zero touch provisioning

Monitoring and diagnostics
Cable failure testing
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts

MS250-24

General Purpose + Redundant Power

• 4 x 10G SFP+ uplink

• Dynamic Layer 3 routing

• Stacks with MS210

• 24-port model, PoE+ Support

• Recommended for general purpose deployments

Configurations
MS250-24P: includes 370 W PoE / PoE+
80G Physical Stacking
Field replaceable power

Hardware platform
Voice and Video QoS
Low noise
Non-blocking switch fabric
Hot-swappable power supplies
Ultra-reliable, includes lifetime warranty

Power over Ethernet (for PoE model)
802.3af (PoE) 15.4 W per port
802.3at (PoE+) 30 W per port
MS250-24P maximum PoE output: 370 W
PoE available simultaneously on all ports
Intelligent PoE power allocation based on device advertisement (LLDP)

Cloud management
Visibility and control over thousands of ports
Built-in multi site management
Zero touch provisioning

Monitoring and diagnostics
Cable failure testing
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts

Layer 3
Static routing
Dynamic routing (OSPFv2) *
DHCP Server and Relay
First of a kind UI-based configuration
Easy to configure routed interfaces
Warm spare (VRRP) with DHCP Failover *

* OSPF and Warm Spare do not operate concurrently

MS250-48

General Purpose + Redundant Power

• 4 x 10G SFP+ uplink

• Dynamic Layer 3 routing

• Stacks with MS210

• 48-port model, PoE+ Support

• Recommended for general purpose deployments

Configurations
80G Physical Stacking
Field replaceable power
MS250-48LP includes 370 W PoE / PoE+
MS250-48FP includes 740 W PoE / PoE+

Hardware platform
Voice and Video QoS
Low noise
Non-blocking switch fabric
Hot-swappable power supplies
Ultra-reliable, includes lifetime warranty

Power over Ethernet (for PoE models)
802.3af (PoE) 15.4 W per port
802.3at (PoE+) 30 W per port
MS250-48LP maximum PoE output: 370 W
MS250-48FP maximum PoE output: 740 W
PoE available simultaneously on all ports
Intelligent PoE power allocation based on device advertisement (LLDP)

Cloud management
Visibility and control over thousands of ports
Built-in multi site management
Zero touch provisioning

Monitoring and diagnostics
Cable failure testing
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts

Layer 3
Static routing
Dynamic routing (OSPFv2) *
DHCP Server and Relay
First of a kind UI-based configuration
Easy to configure routed interfaces
Warm spare (VRRP) with DHCP Failover *

* OSPF and Warm Spare do not operate concurrently

MS350-24

High-Performance + Redundant Power

• 4 x 10G SFP+ uplink

• 160G Physical stacking

• Dynamic Layer 3 routing

• Available mGig and UPoE support

• Recommended for performance-critical environments

Configurations
MS350-24P includes 370 W PoE / PoE+

Hardware platform
Voice and Video QoS
Non-blocking switch fabric
Hot-swappable power supplies and fans
Ultra-reliable, includes lifetime warranty

Power over Ethernet (for PoE model)
802.3af (PoE) 15.4 W per port
802.3at (PoE+) 30 W per port
MS350-24P maximum PoE output: 370 W
PoE available simultaneously on all ports
Intelligent PoE power allocation based on device advertisement (LLDP)

Cloud management
Visibility and control over thousands of ports
Built-in multi site management
Zero touch provisioning

Monitoring and diagnostics
Cable failure testing
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts

Layer 3
Dynamic routing (OSPFv2) *
Static routing
DHCP Relay
DHCP Server
First of a kind UI-based configuration
Easy to configure routed interfaces
Warm spare redundancy (VRRP) *
DHCP Failover

* OSPF and Warm Spare do not operate concurrently

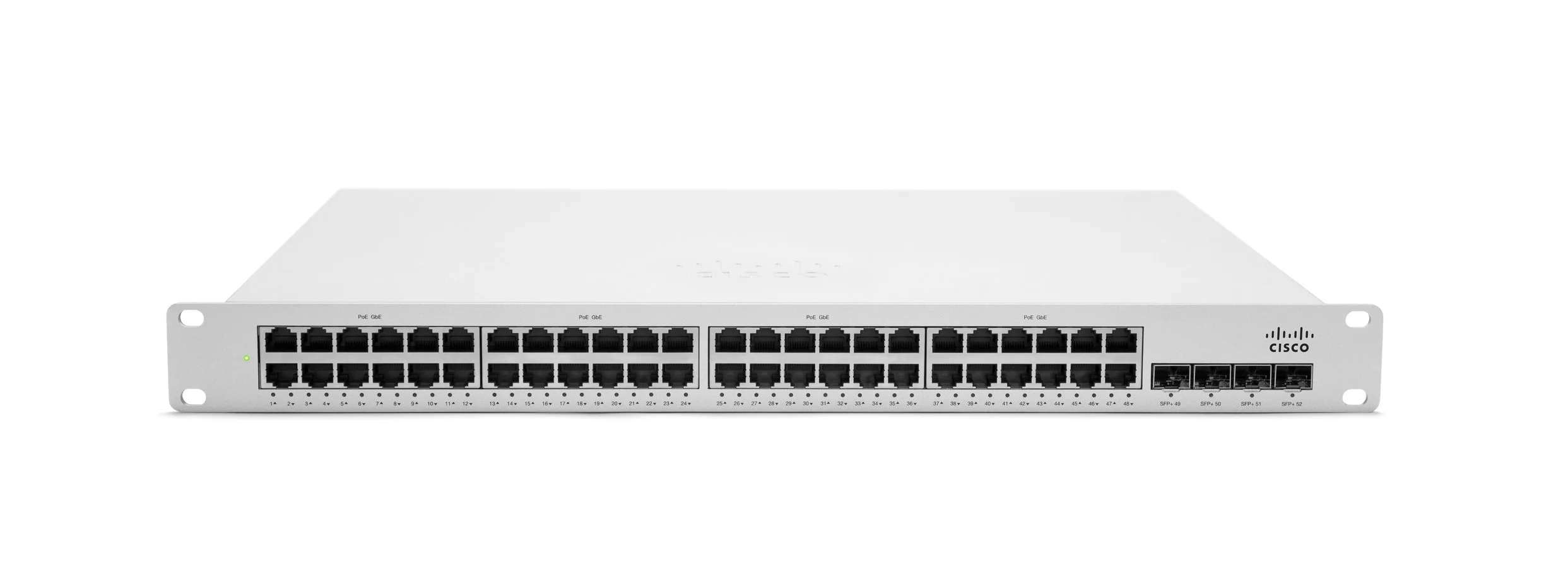

MS350-48

High-Performance + Redundant Power

• 4 x 10G SFP+ uplink

• 160G Physical stacking

• Dynamic Layer 3 routing

• Available mGig and UPoE support

• Recommended for performance-critical environments

Configurations
MS350-48LP includes 370 W PoE / PoE+
MS350-48FP includes 740 W PoE / PoE+

Hardware platform
Voice and Video QoS
Non-blocking switch fabric
Hot-swappable power supplies and fans
Ultra-reliable, includes lifetime warranty

Power over Ethernet (for PoE models)
802.3af (PoE) 15.4 W per port
802.3at (PoE+) 30 W per port
MS350-48LP maximum PoE output: 370 W
MS350-48FP maximum PoE output: 740 W
PoE available simultaneously on all ports
Intelligent PoE power allocation based on device advertisement (LLDP)

Cloud management
Visibility and control over thousands of ports
Built-in multi site management
Zero touch provisioning

Monitoring and diagnostics
Cable failure testing
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts

Layer 3
Dynamic routing (OSPFv2) *
Static routing
DHCP Relay
DHCP Server
First of a kind UI-based configuration
Easy to configure routed interfaces
Warm spare redundancy (VRRP) *
DHCP Failover

* OSPF and Warm Spare do not operate concurrently

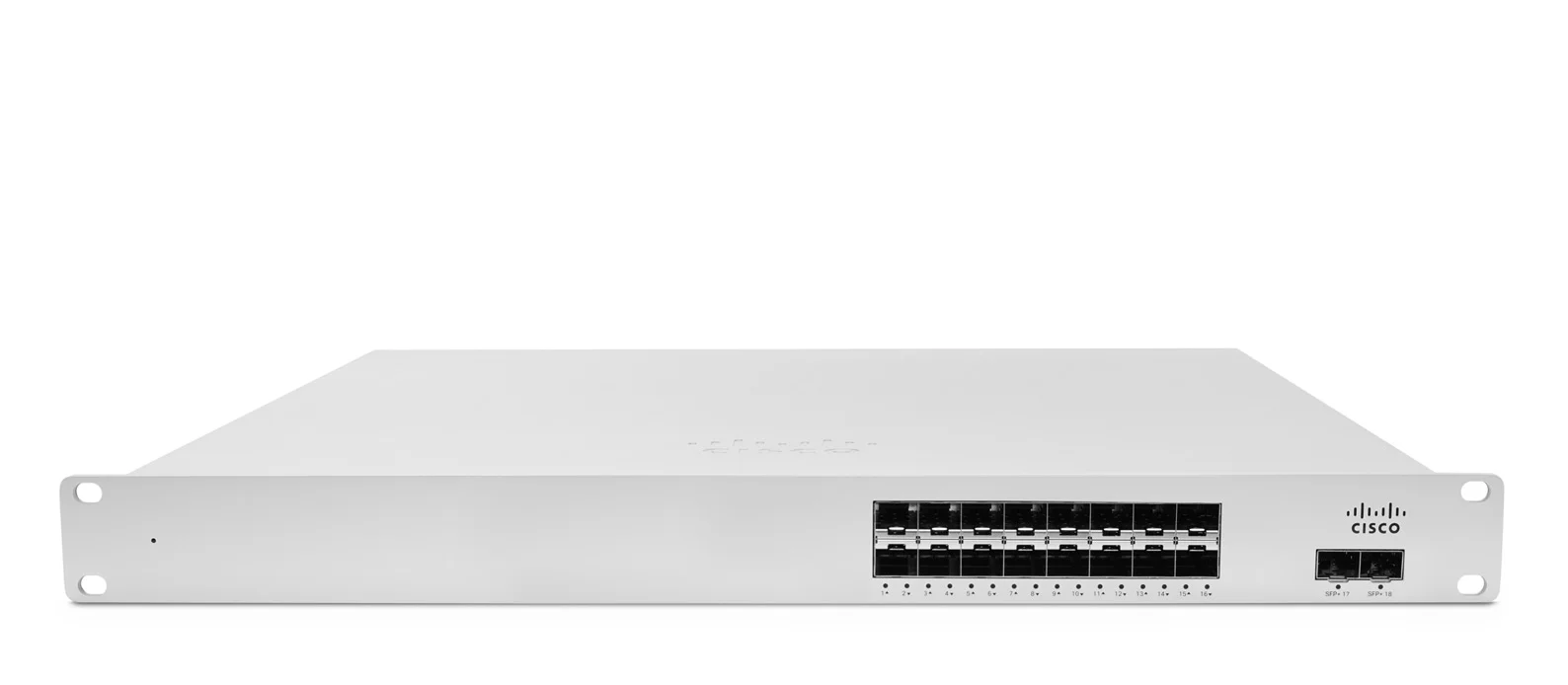

MS410-16

Enterprise Switching

• 10G SFP+ uplinks

• 160G Physical stacking

• Up to 144Gbps of switching capacity
  16-port model

• Recommended for enterprise environments

Configurations
16 Port 1G Fiber Aggregation Switch

Hardware platform
16 × 1 GbE SFP Fiber
2 × 10Gbe SFP+ Fiber
1 × 10/100/1000 RJ45 management port
Non-blocking switch fabric
72 Gbps switching capacity
Compact design (1 RU)
Ultra-reliable, includes lifetime warranty

Switching capabilities
802.1p Quality of Service prioritization
802.1Q VLAN tagging for up to 4,094 VLANs
802.1D Spanning Tree Protocol (STP) and 802.1w Rapid Spanning Tree Broadcast storm control

Layer 3 capabilities
Dynamic routing (OSPFv2)
Static routing
DHCP Relay
DHCP Server
First of a kind UI-based configuration
Easy to configure routed interfaces
Warm spare redundancy (VRRP)
DHCP Failover

* Layer 3 with stacking available Q2 CY2016

Cloud management
Unified switch management from aggregation to access layers
Visibility and control over thousands of ports
Built-in multi-site management
Zero touch provisioning

Monitoring and diagnostics
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts

MS410-32

Enterprise Switching

• 10G SFP+ uplinks

• 160G Physical stacking

• Up to 144Gbps of switching capacity

• 32-port model

• Recommended for enterprise environments

Configurations
32 Port 1G Fiber Aggregation Switch

Hardware platform
32 × 1 GbE SFP Fiber
4 × 10 GbE SFP+ Fiber
1 × 10/100/1000 RJ45 management port
Non-blocking switch fabric
144 Gbps switching capacity
Compact design (1 RU) for space-constrained environments
Ultra-reliable, includes lifetime Warranty

Switching capabilities
802.1p Quality of Service prioritization
802.1Q VLAN tagging for up to 4,094 VLANs
802.1D Spanning Tree Protocol (STP) and 802.1w Rapid Spanning Tree Broadcast storm control

Layer 3 capabilities
Dynamic routing (OSPFv2)
Static routing
DHCP Relay
DHCP Server
First of a kind UI-based configuration
Easy to configure routed interfaces
Warm spare redundancy (VRRP)
DHCP Failover

* Layer 3 with stacking available Q2 CY2016

Cloud management
Unified switch management from aggregation to access layers
Visibility and control over thousands of ports
Built-in multi-site management
Zero touch provisioning

Monitoring and diagnostics
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts

MS425-16

Large Enterprise Switching

• 40G QSFP+ uplinks

• 160G Flexible stacking

• Up to 800Gbps of switching capacity

• 16-port model

• Recommended for very high-performance environments

Configurations
16 Port 10GbE Fiber aggregation switch
160G Physical stacking

Hardware platform
16 × 10GbE SFP+
2 × 40GbE QSFP+ uplink/stacking ports
1 × 10/100/1000 RJ45 management port
Non-blocking switch fabric
480Gbps switching capacity
Compact design (1 RU) for space-constrained environments
Ultra-reliable, includes lifetime warranty

Switching capabilities
802.1p Quality of Service prioritization
802.1Q VLAN tagging for up to 4095 VLANs
802.1D Spanning Tree Protocol (STP) and 802.1w Rapid Spanning Tree Broadcast storm control

Layer 3 capabilities
Dynamic routing (OSPFv2)
Static routing
DHCP Relay
DHCP Server
First of a kind UI-based configuration
Easy to configure routed interfaces
Warm spare redundancy (VRRP)
DHCP Failover

Cloud management
Unified switch management from aggregation to access layers
Visibility and control over thousands of ports
Built-in multi-site management
Zero touch provisioning

Monitoring and diagnostics
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts

MS425-32

Large Enterprise Switching

• 40G QSFP+ uplinks

• 160G Flexible stacking

• Up to 800Gbps of switching capacity

• 32-port model

• Recommended for very high-performance environments

Configurations
32 Port 10GbE aggregation switch
160G Physical stacking

Hardware platform
32 × 10GbE SFP+ Fiber
2 × 40GbE QSFP+ Fiber uplink/stacking ports
1 × 10/100/1000 RJ45 management port
Non-blocking switch fabric
800Gbps switching capacity
Compact design (1 RU) for space-constrained environments
Ultra-reliable, includes lifetime warranty

Switching capabilities
802.1p Quality of Service prioritization
802.1Q VLAN tagging for up to 4095 VLANs
802.1D Spanning Tree Protocol (STP) and 802.1w Rapid Spanning Tree Broadcast storm control

Layer 3 capabilities
Dynamic routing (OSPFv2)
Static routing
DHCP Relay
DHCP Server

First of a kind UI-based configuration
Easy to configure routed interfaces
Warm spare redundancy (VRRP)
DHCP Failover

Cloud management
Unified switch management from aggregation to access layers
Visibility and control over thousands of ports
Built-in multi-site management
Zero touch provisioning

Monitoring and diagnostics
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts
