Barracuda Backup Server 190
Charlotte, NC certified Barracuda reseller

Barracuda Backup Appliances

JSCM Group is the source for your Barracuda Backup needs. Not only do we offer incredible pricing on Barracuda NextGen Firewalls, Barracuda Backup Appliances, and more, we have an incredible team of talented and knowledgable individuals ready to help you with installation, configuration and troubleshooting. Even better, JSCM Group can manage and maintain any Barracuda Firewall, Backups Appliance, or any other Barracuda device.

long dotted gray line.jpg

Protecting Data Everywhere

The days when you only had to protect data in your on-premises servers are gone. Now you also are responsible for securing SaaS and cloud-hosted applications such as Microsoft Office 365. Barracuda Backup has the power and flexibility to efficiently protect data wherever it resides.


Backup

Encrypted Appliance
Inline Deduplication
Replication
Offsite Vaulting

Cloud-to-Cloud Backup
Unlimited Barracuda Cloud Storage
Near Continuous Data Protection

Recovery

Data Recovery
LiveBoot
Instant Replacement

Management

Centralized Management
Flexible Deployments



Barracuda BackUp Banner image.jpg

A backup solution any way you want it: Appliance, Virtual, or Cloud-to-Cloud.

gray bar.jpg

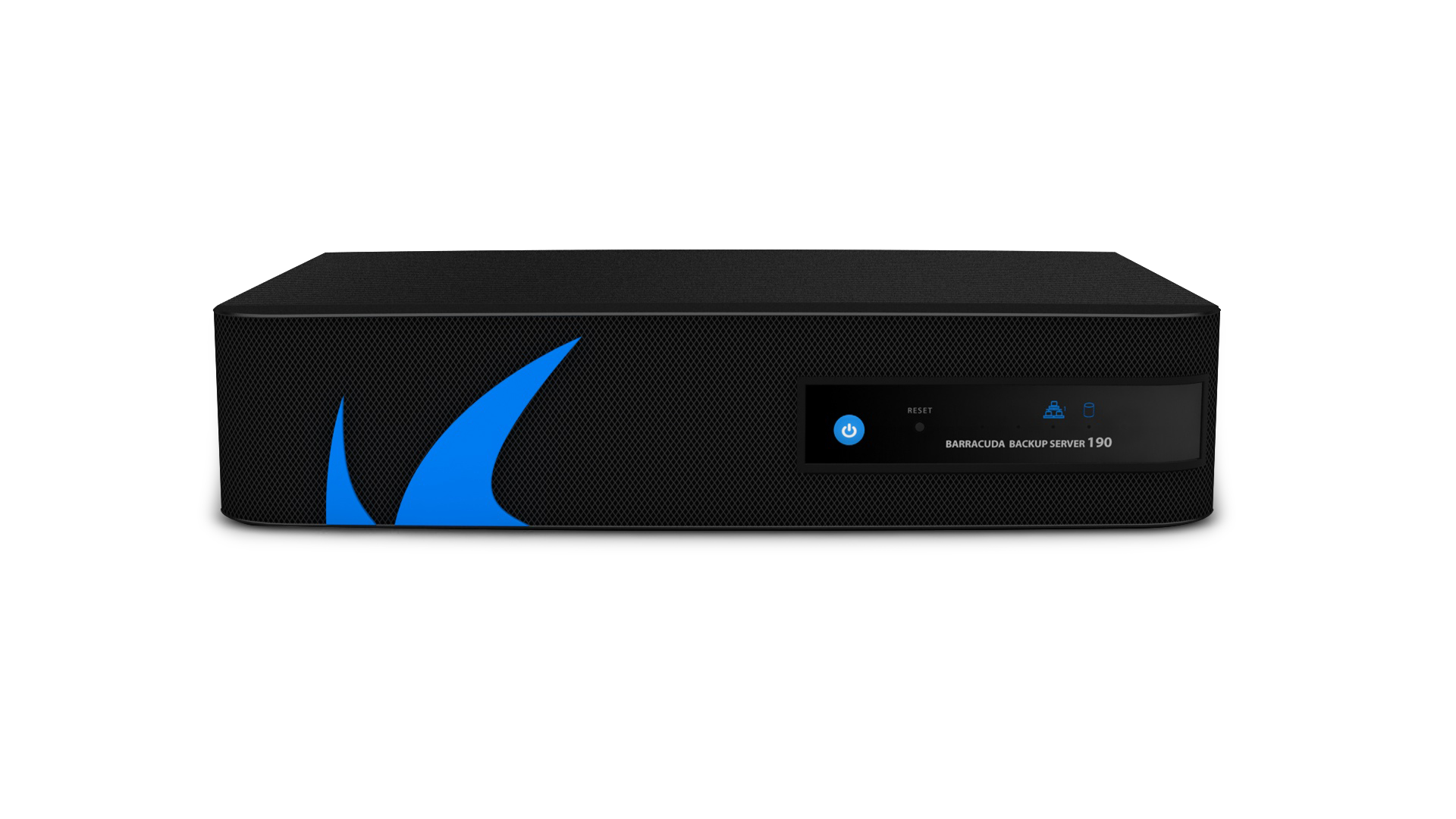

Barracuda Backup 190

Barracuda Backup 190

  • Usable Storage Capacity: 1 TB

  • Recommended Environment: 500 GB

long black line.jpg

Hardware
Form Factor: Desktop
Dimensions (in): 10.0 x 2.0 x 8.3
Weight (lbs): 6
Network Interface: 1Gb RJ45
Optional 10gb Fiber
Disk Arrangement: 1x1TB

Features
Redundant Disk Array (Primary Array): N/A
Dedicated Database and OS Disks
Redundant Disk Array (Database/OS Array)
Swappable Disks: N/A
Redundant Power Supplies
AC Input Current (Amps @ 120V): 0.25
Intelligent Platform Management Interface (IPMI): N/A
Site-to-Site Replication: Sender


Barracuda Backup 290

Barracuda Backup 290

  • Usable Storage Capacity: 2 TB

  • Recommended Environment: 1 TB

long dotted gray line.jpg

Hardware
Form Factor: 1 U Micro
Dimensions (in): 16.8 x 1.7 x 10.2
Weight (lbs): 9
Network Interface: 1Gb RJ45
Optional 10gb Fiber
Disk Arrangement: 1x2TB

Features
Redundant Disk Array (Primary Array)
Dedicated Database and OS Disks
Redundant Disk Array (Database/OS Array)
Swappable Disks
Redundant Power Supplies
AC Input Current (Amps @ 120V): 0.30
Intelligent Platform Management Interface (IPMI)
Site-to-Site Replication: Sender


Barracuda Backup 295

Barracuda Backup 295


  • Usable Storage Capacity: 2 TB

  • Recommended Environment: 1 TB

long dotted gray line.jpg

Hardware
Form Factor: Desktop
Dimensions (in): 10.0 x 2.0 x 8.3
Weight (lbs): 6
Network Interface: 1Gb RJ45
Optional 10gb Fiber
Disk Arrangement: 1x2TB

Features

Redundant Disk Array (Primary Array)
Dedicated Database and OS Disks
Redundant Disk Array (Database/OS Array)
Swappable Disks
Redundant Power Supplies
AC Input Current (Amps @ 120V): 0.25
Intelligent Platform Management Interface (IPMI)
Site-to-Site Replication: Sender

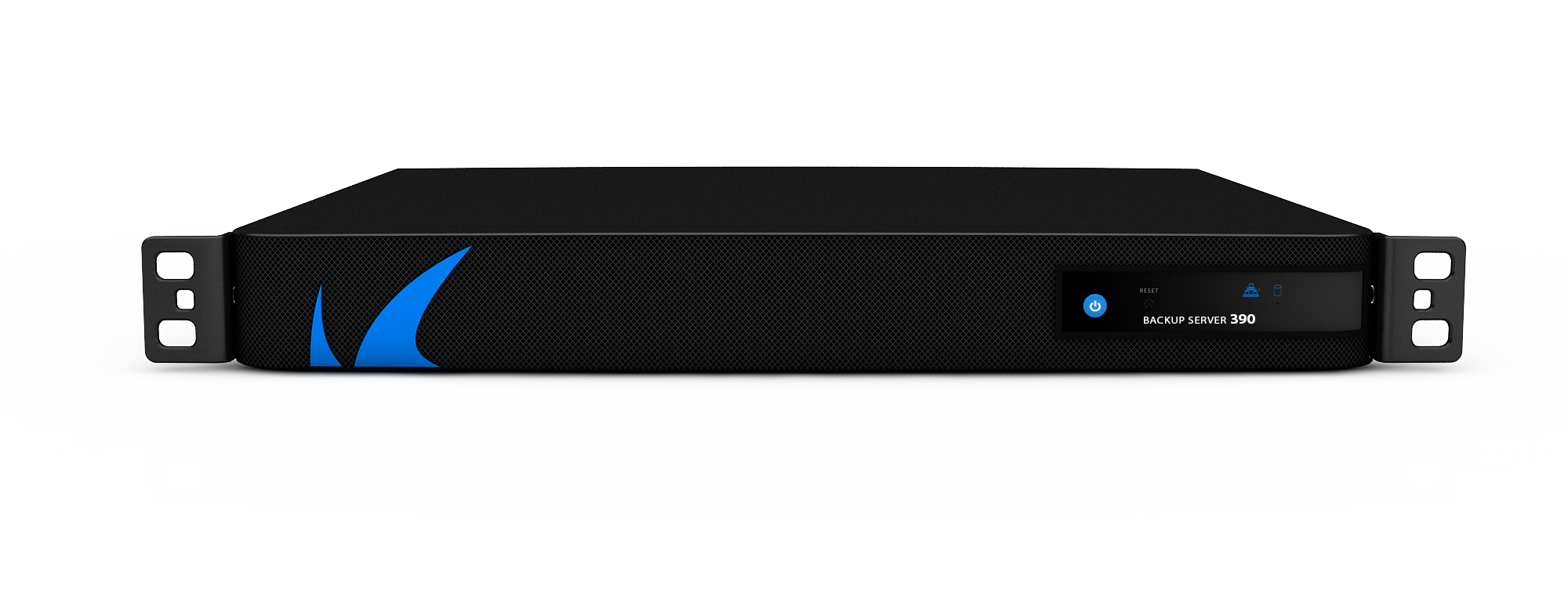

Barracuda Backup 390

Barracuda Backup 390

  • Usable Storage Capacity: 4 TB

  • Recommended Environment: 2 TB

long dotted gray line.jpg

Hardware
Form Factor: 1 U Mini
Dimensions (in): 16.8 x 1.7 x 14.0
Weight (lbs): 12
Network Interface: 1Gb RJ45
Optional 10gb Fiber
Disk Arrangement: 2 x 4TB

Features
Redundant Disk Array (Primary Array): SW RAID 1
Dedicated Database and OS Disks
Redundant Disk Array (Database/OS Array)
Swappable Disks
Redundant Power Supplies
AC Input Current (Amps @ 120V): 0.40
Intelligent Platform Management Interface (IPMI)
Site-to-Site Replication: Sender


Barracuda Backup 490

Barracuda Backup 490


  • Usable Storage Capacity: 6 TB

  • Recommended Environment: 3 TB

long dotted gray line.jpg

Hardware
Form Factor: 1 U
Dimensions (in): 16.8 x 1.7 x 19.8
Weight (lbs): 26
Network Interface: 1Gb RJ45
Optional 10gb Fiber
Disk Arrangement: 4 x 4TB

Features
Redundant Disk Array (Primary Array): SW RAID 10
Dedicated Database and OS Disks
Redundant Disk Array (Database/OS Array)
Swappable Disks: Hot Swappable
Redundant Power Supplies
AC Input Current (Amps @ 120V): 0.65
Intelligent Platform Management Interface (IPMI)
Site-to-Site Replication: Sender/Receiver


Barracuda Backup 690

Barracuda Backup 690


  • Usable Storage Capacity: 12 TB

  • Recommended Environment: 6 TB

Hardware
Form Factor: 1 U
Dimensions (in): 17.2 x 1.7 x 27.0
Weight (lbs): 26
Network Interface: 2x10Gb RJ45
Optional 10gb Fiber
Disk Arrangement: 4 x 6TB

Features
Redundant Disk Array (Primary Array): HW RAID 10
Dedicated Database and OS Disks
Redundant Disk Array (Database/OS Array)
Swappable Disks: Hot Swappable
Redundant Power Supplies
AC Input Current (Amps @ 120V): 1.3
Intelligent Platform Management Interface (IPMI): Yes
Site-to-Site Replication: Sender/Receiver


Barracuda Backup 790

Barracuda Backup 790


  • Usable Storage Capacity: 18 TB

  • Recommended Environment: 9 TB

Hardware
Form Factor: 2 U
Dimensions (in): 17.4 x 3.5 x 25.8
Weight (lbs): 45
Network Interface: 2x10Gb RJ45
Optional 10gb Fiber: 2-port SFP+
Disk Arrangement: 6 x 6TB

Features
Redundant Disk Array (Primary Array): HW RAID 10
Dedicated Database and OS Disks
Redundant Disk Array (Database/OS Array)
Swappable Disks: Hot Swappable
Redundant Power Supplies: Hot Swappable
AC Input Current (Amps @ 120V): 1.7
Intelligent Platform Management Interface (IPMI): Yes
Site-to-Site Replication: Sender/Receiver


Barracuda Backup 890

Barracuda Backup 890


  • Usable Storage Capacity: 24 TB

  • Recommended Environment: 12 TB

long dotted gray line.jpg

Hardware
Form Factor: 2 U
Dimensions (in): 17.4 x 3.5 x 25.8
Weight (lbs): 52
Network Interface: 2x10Gb RJ45
Optional 10gb Fiber: 2-port SFP+
Disk Arrangement: 8 x 6TB

Features
Redundant Disk Array (Primary Array): HW RAID 10
Dedicated Database and OS Disks
Redundant Disk Array (Database/OS Array)
Swappable Disks: Hot Swappable
Redundant Power Supplies: Hot Swappable
AC Input Current (Amps @ 120V): 2.5
Intelligent Platform Management Interface (IPMI): Yes
Site-to-Site Replication: Sender/Receiver


Barracuda Backup 895

Barracuda Backup 895


  • Usable Storage Capacity: 36 TB

  • Recommended Environment: 18 TB

long dotted gray line.jpg

Hardware
Form Factor: 3 U
Dimensions (in): 17.4 x 5.3 x 23.8
Weight (lbs): 70
Network Interface: 2x10Gb RJ45
Optional 10gb Fiber: 2-port SFP+
Disk Arrangement: 10 x 6TB

Features
Redundant Disk Array (Primary Array): HW RAID 60
Dedicated Database and OS Disks
Redundant Disk Array (Database/OS Array)
Swappable Disks: Hot Swappable
Redundant Power Supplies: Hot Swappable
AC Input Current (Amps @ 120V): 2.6
Intelligent Platform Management Interface (IPMI): Yes
Site-to-Site Replication: Sender/Receiver


Barracuda Backup 990

Barracuda Backup 990


  • Usable Storage Capacity: 48TB

  • Recommended Environment: 24 TB

long dotted gray line.jpg

Hardware
Form Factor: 3 U
Dimensions (in): 17.4 x 5.3 x 23.8
Weight (lbs): 76
Network Interface: 2x10Gb RJ45
Optional 10gb Fiber: 2-port SFP+
Disk Arrangement: 16 x 4TB

Features
Redundant Disk Array (Primary Array): HW RAID 60
Dedicated Database and OS Disks
Redundant Disk Array (Database/OS Array)
Swappable Disks: Hot Swappable
Redundant Power Supplies: Hot Swappable
AC Input Current (Amps @ 120V): 6.9
Intelligent Platform Management Interface (IPMI): Yes
Site-to-Site Replication: Sender/Receiver


Barracuda Backup 995

Barracuda Backup 995


  • Usable Storage Capacity: 80TB

  • Recommended Environment: 40 TB

Hardware
Form Factor: 4 U
Dimensions (in): 17.4 x 7.0 x 27.9
Weight (lbs): 114
Network Interface: 2x10Gb RJ45
Optional 10gb Fiber: 2-port SFP+
Disk Arrangement: 14 x 8TB

Features
Redundant Disk Array (Primary Array): HW RAID 60
Dedicated Database and OS Disks: 2x2TB
Redundant Disk Array (Database/OS Array): HW RAID 1
Swappable Disks: Hot Swappable
Redundant Power Supplies: Hot Swappable
AC Input Current (Amps @ 120V): 7.8
Intelligent Platform Management Interface (IPMI): Yes
Site-to-Site Replication: Sender/Receiver


Barracuda Backup 1090

Barracuda Backup 1090


  • Usable Storage Capacity: 112TB

  • Recommended Environment: 56 TB

Hardware
Form Factor: 4 U
Dimensions (in): 17.4 x 7.0 x 27.9
Weight (lbs): 121
Network Interface: 2x10Gb RJ45
Optional 10gb Fiber: 2-port SFP+
Disk Arrangement: 32 x 4TB

Features
Redundant Disk Array (Primary Array): HW RAID 60
Dedicated Database and OS Disks: 4x2TB
Redundant Disk Array (Database/OS Array): HW RAID 10
Swappable Disks: Hot Swappable
Redundant Power Supplies: Hot Swappable
AC Input Current (Amps @ 120V): 8.4
Intelligent Platform Management Interface (IPMI): Yes
Site-to-Site Replication: Sender/Receiver



gray bar.jpg
Barracuda BackUp Green banner ad.jpg

Barracuda Backup makes it easier and more cost-effective than ever
